Vineyard Posts
artos® Vineyard Posts
artos® C-Posts
The special feature of the artos C posts are its external hooks, which are made at an angle and then aligned afterwards. This means that the hooks cannot be pushed into the punched hole, even by machinery use in the vineyard. An additional indent on the hook ensures stability and strength for the hook itself.
Due to its shape, the artos C post is perfectly suited to mechanical work in the vineyard.
Other applications for this post include fruit trellising and fencing applications.
Specifications:
Dimensions: 50 x 42 mm
Thickness: 1,50 – 1,60 mm
Length: 2300 – 2700 mm
Type of galvanization: Strip- / hot-dip galvanized
artos® D-Posts
The artos D post is characterised by a high stability and excellent seating in the ground which come from its shape and large surface area in contact with the soil.
The post is available in different sizes, thicknesses and different internal hooks. To be able to offer solutions for all types of trellis requirements, it is possible to customise the internal hooks types, given a minimum order quantity.
Specifications:
Dimensions: 65 x 42 mm
Thickness: 2,00 – 2,10 mm
Length: 2500 – 2700 mm
Type of glavanization: Strip / hot-dip galvanized
artos® D-Posts
The artos D post is characterised by a high stability and excellent seating in the ground which come from its shape and large surface area in contact with the soil.
The post is available in different sizes, thicknesses and different internal hooks. To be able to offer solutions for all types of trellis requirements, it is possible to customise the internal hooks types, given a minimum order quantity.
Specifications:
Dimensions: 65 x 42 mm
Thickness: 2,00 – 2,10 mm
Length: 2500 – 2700 mm
Type of glavanization: Strip / hot-dip galvanized
artos® E-Posts
E55 – profile width 55 mm, the all-rounder, high stability
The special shape of this post gives it good ground seating and a good resistance to wind impact on the trellis. To be able to offer solutions for all types of trellis requirements the artos E post is available with three different types of internal hooks options and in four material thicknesses. Due to its exceptional profile, the internal hooks are granted a great strength and are very robust. Depending on the configuration, the internal hooks can be used with a maximum wire diameter of 2,2mm.
Specifications:
Dimensions: 65 x 42 mm
Thickness: 2,00 – 2,10 mm
Length: 2500 – 2700 mm
Type of galvanization: Strip / hot-dip galvanized
artos® End-posts EP1 / EP2
The eye-catching profile of the artos end post has an excellent stability and ground seating, due to its large surface area in contact with the soil. With different material thicknesses available, we can offer a personalised solution to each and every request. Years of experience working with harvesting machines confirms the stability of this end post.
The key to the success of this posts is due to the 8 or 10 rounded metal bars that are welded into the post (custom shape). They ensure that the post has an excellent seating in the spoil, as well as a strong resistance to twisting.
The rounded metal bars also enable you to attach wire to the end post. They can be used for chains to fix the wire to the post, or other accessories such as tension springs to secure your foliage wires. At the base of the post the metal bars are welded inclined to help fix the post into the ground, as well as being used as a stopper when a ground base plate is used.
The welded bars on the artos EP2 do not surpass the width of the metal profile of the post.
Specifications:
Dimension: 65 x 42 mm
Thickness: 2,10 mm
Length: 2500 – 3000 mm
Type of galvanization: hot-dip galvanized
artos® End-posts EP1 / EP2
The eye-catching profile of the artos end post has an excellent stability and ground seating, due to its large surface area in contact with the soil. With different material thicknesses available, we can offer a personalised solution to each and every request. Years of experience working with harvesting machines confirms the stability of this end post.
The key to the success of this posts is due to the 8 or 10 rounded metal bars that are welded into the post (custom shape). They ensure that the post has an excellent seating in the spoil, as well as a strong resistance to twisting.
The rounded metal bars also enable you to attach wire to the end post. They can be used for chains to fix the wire to the post, or other accessories such as tension springs to secure your foliage wires. At the base of the post the metal bars are welded inclined to help fix the post into the ground, as well as being used as a stopper when a ground base plate is used.
The welded bars on the artos EP2 do not surpass the width of the metal profile of the post.
Specifications:
Dimension: 65 x 42 mm
Thickness: 2,10 mm
Length: 2500 – 3000 mm
Type of galvanization: hot-dip galvanized
Hadley Vineposts
Hadley vineposts are available in a range of lengths and strengths to suit all applications and can be powder coated, pre-galvanised and chromed in a range of colours.
We also supply end posts and nursery posts for young vines, all manufactured to the same high standards of quality to ensure a long working life.
Hadley vineposts benefit from the UltraSTEEL® process to deliver a unique combination of durability and performance. The steel is rolled between two mating rolls, producing a dimpled pattern across the surface. This ‘work hardening’ results in a much stronger product, one that delivers a better grip in the ground for greater stability.
Hadley vineposts outperform traditional wooden vine pickets or alternative metal vine supports on a number of levels:
- High rigidity for exceptional load carrying capacity
- High stability in the ground due to greater surface area
- Extremely flexible – spring back into position when rotated as much as 180°
- 7cm tag pitch and a tag strong enough to withstand machinery impact
- Disease resistant steel product means healthier crops
- Durable and low maintenance
- Long service and less material for a more environmentally friendly product
- Guaranteed corrosion-resistant for up to 25 years
Hadley Vinepost Maxi Extra
The X-tra reinforced row post (1.8 mm), which can also be used conditionally as an end post *.
* Without guarantee, up to a maximum line length of 100 m
Specifications:
Dimensions: 49 x 44 mm
Thickness: 1,8 mm
Length: 2500 – 2750 mm
Type of galvanization: hot-dip galvanized
Hadley Vineposts
Hadley vineposts are available in a range of lengths and strengths to suit all applications and can be powder coated, pre-galvanised and chromed in a range of colours.
We also supply end posts and nursery posts for young vines, all manufactured to the same high standards of quality to ensure a long working life.
Hadley vineposts benefit from the UltraSTEEL® process to deliver a unique combination of durability and performance. The steel is rolled between two mating rolls, producing a dimpled pattern across the surface. This ‘work hardening’ results in a much stronger product, one that delivers a better grip in the ground for greater stability.
Hadley vineposts outperform traditional wooden vine pickets or alternative metal vine supports on a number of levels:
- High rigidity for exceptional load carrying capacity
- High stability in the ground due to greater surface area
- Extremely flexible – spring back into position when rotated as much as 180°
- 7cm tag pitch and a tag strong enough to withstand machinery impact
- Disease resistant steel product means healthier crops
- Durable and low maintenance
- Long service and less material for a more environmentally friendly product
- Guaranteed corrosion-resistant for up to 25 years
Hadley Vinepost Maxi Extra
The X-tra reinforced row post (1.8 mm), which can also be used conditionally as an end post *.
* Without guarantee, up to a maximum line length of 100 m
Specifications:
Dimensions: 49 x 44 mm
Thickness: 1,8 mm
Length: 2500 – 2750 mm
Type of galvanization: hot-dip galvanized
leova® Vineposts
leova® HARVESTAR – The clever harvest helper
The innovative stamped post is designed specially for use by harvesters. The patented safety wire prevents accidental lifting of the guy wire or the shaped profile protecting the harvester and damage to the harvester or deformation of the hooks.
This makes leova® HARVESTAR super strong for your yield!
Convincing efficiency
- Safer, problem-free harvester use
- Less maintenance after picking
- Surface-protecting design prevents damage to posts and wire
- Durable
- Complete system
- Patented safety wire prevents damage
Specifications:
- Dimensions: 60 x 40 mm
- Thickness: 1,5 mm
- Length: 2250 – 2750 mm
- Type of galvanization: strip galvanized
leova® IU-PLUS
The vineyard post for less stringent requirements.
Suitable for all soils and foliage heights < 2 m.
The interior combination hooks of the leova® 50/35 IU-PLUS offer customized solutions for use on uneven terrain and in flat vineyards.
The exterior hooks of the leova® 50/35 PLUS make inserting the wire both easy and straightforward.
Strong as a lion – suited to your requirements
- Designed for harvesting machinery
- No hook shifting
- Fixed wire anchoring
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
Specifications:
- Dimensions: 51 x 35 mm
- Thickness: 1,5 mm
- Length: 1800 – 2750 mm
- Type of galvanization: strip / hot-dip galvanized
leova® IU-PLUS
The vineyard post for less stringent requirements.
Suitable for all soils and foliage heights < 2 m.
The interior combination hooks of the leova® 50/35 IU-PLUS offer customized solutions for use on uneven terrain and in flat vineyards.
The exterior hooks of the leova® 50/35 PLUS make inserting the wire both easy and straightforward.
Strong as a lion – suited to your requirements
- Designed for harvesting machinery
- No hook shifting
- Fixed wire anchoring
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
Specifications:
- Dimensions: 51 x 35 mm
- Thickness: 1,5 mm
- Length: 1800 – 2750 mm
- Type of galvanization: strip / hot-dip galvanized
leova® S-PLUS
Especially suitable for lower setting distances.
Suitable for all soils and foliage heights of > 2 m.
The exterior hooks make inserting the wire both easy and straightforward.
Strong as a lion – suited to your requirements
- Designed for harvesting machinery
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
- Weather-resistant machine steel (COR-TEN®)
- Option for attaching wire diffusion springs
Specifications:
- Dimensions: 50-54 x 40 mm
- Thickness: 1,5 – 1,80 mm
- Length: 2250 – 2750 mm
- Type of galvanization: hot-dip galvanized / Corten
leova® S-TOP
Europe’s strongest vineyard post
The leova® 60/40 S-TOP steel post offers a great degree of torsional stiffness as well as lateral and bending stability with a wall thickness of 2 mm.
A setting distance of 6 m is also possible with a foliage height of > 2 m. This saves time and money. With their outstanding properties, they are the strongest vineyard posts in Europe. This has been tested and confirmed by Vienna Technical University.
Strong as a lion – suited to your requirements
- Maximum load bearing capacity
- Designed for harvesting machinery
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Option for attaching wire diffusion springs
Specifications:
- Dimensions: 60 x 40 mm
- Thickness: 2,0 mm
- Length: 2500 – 3000 mm
- Type of galvanization: hot-dip galvanized
leova® S-TOP
Europe’s strongest vineyard post
The leova® 60/40 S-TOP steel post offers a great degree of torsional stiffness as well as lateral and bending stability with a wall thickness of 2 mm.
A setting distance of 6 m is also possible with a foliage height of > 2 m. This saves time and money. With their outstanding properties, they are the strongest vineyard posts in Europe. This has been tested and confirmed by Vienna Technical University.
Strong as a lion – suited to your requirements
- Maximum load bearing capacity
- Designed for harvesting machinery
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Option for attaching wire diffusion springs
Specifications:
- Dimensions: 60 x 40 mm
- Thickness: 2,0 mm
- Length: 2500 – 3000 mm
- Type of galvanization: hot-dip galvanized
leova® 60/40 TOP
Europe’s strong vineyard post.
The leova® 60/40 TOP steel post offers a great degree of torsional stiffness as well as lateral and bending stability.
A setting distance of 6 m is also possible with a foliage height of > 2 m. This saves time and money. With their outstanding properties, they are the strongest vineyard posts in Europe.
This has been tested and confirmed by Vienna Technical University.
Convincing efficiency
- Maximum load bearing capacity
- Designed for harvesting machinery
- For all standard wire types
- Easy to set
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
- Option for attaching wire diffusion springs
Specifications:
- Dimensions: 60 x 40 mm
- Thickness: 1,5 mm
- Length: 2500 – 2750 mm
- Type of galvanization: hot-dip galvanized
leova® END
Maximum load bearing capacity. From start to finish.
The leova® end post is the beginning and end of each row and offers a great degree of torsional stiffness as well as lateral and bending stability with its special design. leova® 60/60 END also stands firm with long rows of posts as a result of the high wall thickness of 2.5 mm. The stability may also be enhanced further if necessary with additionally available anchor plates that are simple to mount.
Setting angle: 20° with closed side facing the row.
Strong as a lion – suited to your requirements
- Maximum load bearing capacity
- Designed for harvesting machinery
- Fixed wire anchoring
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
Specifications:
- Dimensions: 60 x 60 mm
- Thickness: 2,5 mm
- Length: 2500 – 3000 mm
- Type of galvanization: strip / hot-dip galvanized
leova® END
Maximum load bearing capacity. From start to finish.
The leova® end post is the beginning and end of each row and offers a great degree of torsional stiffness as well as lateral and bending stability with its special design. leova® 60/60 END also stands firm with long rows of posts as a result of the high wall thickness of 2.5 mm. The stability may also be enhanced further if necessary with additionally available anchor plates that are simple to mount.
Setting angle: 20° with closed side facing the row.
Strong as a lion – suited to your requirements
- Maximum load bearing capacity
- Designed for harvesting machinery
- Fixed wire anchoring
- For all standard wire types
- Easy to position
- voestalpine quality steel
- Batch-galvanized
- Strip-galvanized
Specifications:
- Dimensions: 60 x 60 mm
- Thickness: 2,5 mm
- Length: 2500 – 3000 mm
- Type of galvanization: strip / hot-dip galvanized
Vineyard Wire

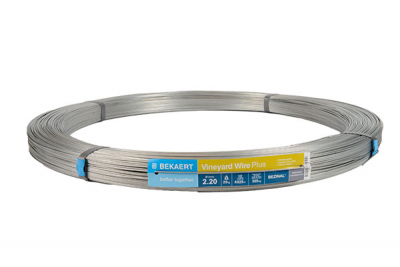

Bekaert Bezinal®
Bekaert Bezinal® Galvanized Wire
Increased trellis lifetime
Thanks to its superior quality and performance, Bezinal® vineyard wire extends the lifetime of your vineyard trellis. This strong yet flexible wire provides the optimum combination of high breaking load and excellent ductility to facilitate your installation.
More meters per coil and less re-tensioning
The high tensile strength of Bezinal® wire allows you to reduce the wire diameter while maintaining the same breaking load. In this way, with the same weight, Bezinal® wire provides between 40% and 120% more meters per coil than heavy galvanized wire. Moreover, the wire’s minimal elongation (4-5%) reduces the need to re-tension, saving you time and operational costs.
Excellent corrosion resistance
The unique zinc-aluminum alloy coating of Bezinal® provides superior resistance to atmospheric corrosion and chemicals. Salt-spray tests prove that Bezinal® wire lasts 4 to 8 times longer than heavily galvanized wire, and twice as long as standard zinc-aluminum coated wire. Moreover, its smooth, homogeneous surface prevents cracks, ensuring ensure that corrosion protection remains optimal despite extreme twisting and bending.
Plastic And Stainless Steel Wires
Plastic And Stainless Steel Wires
Plant Sticks
Steel Plant Sticks
Galvanized Steel Plant Sticks
Ribbed steel sticks in galvanized design have proven to be particularly suitable as plant sticks. The material is extremely hard and is therefore suitable for harvesting machines as well as for tillage and stalking machines. Due to the corrugation, the rod is very easy to climb. The bars are supplied in bundles of 100 or 50 in large bundles of 2,000 pieces or 1,000 pieces on squared timber.
Dimensions 6 – 8 x 1200 – 2200 mm, zinc coating 60-80 g / m²
Fiberglass Plant Sticks
Vinotto® Plant Stick
Vinotto® plant sticks are the real alternative to steel sticks. Made of fiberglass-reinforced plastic, they are the lightest plant sticks on the market, but are in no way inferior to steel sticks in terms of durability and stability. Due to its low weight, the Vinotto® plant stick is particularly recommended for machine insertion. The ease of use and the excellent result will surprise you!
In the dimensions 7 x 1,400, the rods are also available in yellow and red.
- diameter: 7 + 8 mm (also available: 6-10 mm)
- length: 1300 + 1400 mm (any length available on request)
- Color: natural white (on request also green, yellow or red)
- Weight: 130 grams (100 pieces = 13 kg)
- super elastic, no bending
- durable
- ecologically harmless
- no corrosion
- weatherproof
- moisture resistant
Advantages over wood:
- No rotting
- Absolute weather and moisture resistance
- Excellent UV stability
- Ecologically completely harmless (no use of wood preservatives, lacquers or the like)
- Long lifetime
Advantages over metal:
- Only ¼ the weight of ribbed steel (100 pieces – only 13 kg)
- More than three times the bending load – no bending
- No corrosion – no release of metal oxides into the soil
- Ecologically completely harmless
- Excellent impact strength (down to -50 ° Celsius)
Ground Anchors
End anchorages absorb the forces that act on the row of vines when the wires are tensioned and thus enable optimal wire tension. Our range includes different types of anchors for a wide variety of soil types.
Gripple
Apex™ Anker
The APEX Anchor creates a secure, fixed anchoring point below the ground. No pre-digging or ground preparation is required, dramatically reducing installation time.
Pros
- Robust – Designed for drive efficiency and maximum load capacity
- Undisruptive – Streamlined profile for minimal soil disturbance
- Versatile – Suitable for a variety of soil types and environmental conditions
- Quick – Speed of installation delivers significant time and labour savings
- Durable – Three tendon types for maximum corrosion resistance
Technical Data
| Product | TEndon Type | Tendon Length | Systemstärke | Corosion Resistance Rating |
|---|---|---|---|---|
| APEX 3 | Wire Rope (3,00 mm) | 0,9 m1,5 m |
400 kg | ++ |
| Rod Tendon (6,00 mm) | 0,9 m | 600 kg | +++ | |
| Fibre Tendon (4,77 mm) | 0,9 m1,5 m |
600 kg | +++++ | |
| APEX 4 | Wire Rope (4,00 mm) | 0,9 m 1,5 m | 600 kg | ++ |
| Rod Tendon (6,00 mm) | 0,9 m | 600 kg | +++ | |
| Fibre Tendon (4,77 mm) | 0,9 m 1,5 m | 600 kg | +++++ |
Produkte können von Abbildungen abweichen.
Anchoring Kit
Anchoring Kit for Metal Post
The Gripple Plus Anchor is a ready-to-use metal post anchoring kit. The GPAK Plus M includes a pre-cut, fused length of wire rope, a Gripple tensioner and all the accessories needed to brace and protect the metal posts.
Pros
- Practical – Suitable for bracing metal and posts with Gripple anchors
- Strong – Dual brace points for even load transfer
- Safe – Wire protectors and wire thimble included
- Convenient – Can be easily re-tensioned year after year
- Durable – Zinc aluminium wire rope for corrosion resistance
- Professional – Consistent finish for a tidy appearance
Anchor Kit for Wooden Posts
The Gripple Plus Anchor Kit for wooden posts includes a pre-cut, fused length of wire rope, a Gripple tensioner, a wire thimble and a twister to keep the tail wire neat and tidy.
Pros
- Practical – Suitable for bracing wooden end posts with Gripple anchors
- Strong – Dual brace points for even load transfer
- Safe – Accessory included to protect the wire through the anchor loop
- Convenient – Can be easily re-tensioned year after year
- Durable – Zinc aluminium wire rope for corrosion resistance
- Professional – Consistent finish for a tidy appearance
Binding Material
Binding Tubes
Agroflor Binding Tubes
Agroflor binding Tubes come in a practical mesh bag. An outstanding advantage is the good workability, even at low temperatures. AGROFLOR binding tubes are ideally suited for young plants. No chafing or ingrowth thanks to high elasticity. UV resistant and durable for a long life.
FruitSecurity®
Fruitsecurity® – Net and Film Systems
Insect Protection
CLOSED SYSTEMS
- The total netting of closed systems protects against disease transmission by insects, damage caused by birds, or against seed flight (weeds)
- By means of protecting marginal trees against wood damage caused by hail, e.g.fire blight diseases can be prevented effectively
- The aim is to reduce pesticides significantly
- Effective against wind-frost depending on mesh size
- Asia-Bug, Suzuki and Vinegar flies: Durning harvest time, a chemical control of this vermin is difficult, the complete netting offers an ideal protection also in this stage
- Cockchafer: In this case, the cage system can protect against the egg deposition of beetle in the ground
- Vole: Evective protection against mice by mounting the edge plates
Hail Protection
System Wiesel hail protection
- The WIESEL System is an innovative offer for professional fruit growers. This system, based on long-standing professional experience andthe unique inventive genius, has been elaborated from farmers for farmers to become the best system Europe-wide. The WIESEL Systemstands for highest safety standards, impressive functionality and a long service life
- Raster formation by the joint screw connection of the line andcross net wires at the highest point (Firstfi x), it is possible to evenly distribute the emerging loads across the entire
- Plantation: By installing the cross wire over the net, no underlying crosswire rope is needed, and thus a better and more regular hail emptying can be ensured
- Scatter damage: The net curtain midway of the machine track and the ideal emptying considerable decrease scatter damage
- Free space to work: Due to the cross wire mounting over the net more working space is available in the machine track
- Hail net type WIESEL: The two-thread weaving with a machine width of 2.8 mm x 8.7 mm is the optimal protection against small and big hailstones.
Rain Protection
POWERFLEX Foil System
- Thus it is possible to open and close it several times during the season
- The POWERFLEX Foil System is perfectly applicable for anti hail netting
- Extremely high wind stability due to an efficient combination of bungy systems, eaves wire and transverse bracing (solid upwards and elastic downwards)
- End-to-end foils do not have slits in the tree area and the ventilation is provided via the eaves
- In connection with insect protection nets an efficient pest shield is ensured
- The winter storage of the foils is independent from the winter net storage
- The foil can be opened and closed independently from the net
- Easy and quick handling when opening and closing the net and foil
- Edge support or arch system
- Perfect space allowance for the edge row, too
- Exact and wind resistant edge of the foil and hail protection net
- On request to the ground as well, for an ideal protection against birds and insects
